The TLSR9517 supports standards and industrial alliance specifications including Bluetooth 5.2, Basic data rate (BR), Enhanced data rate (EDR), LE, indoor positioning and BLE Mesh standard. The TLSR9517 combines the features and functions needed for high quality wireless audio equipment into a single SoC. The TLSR9517 is designed to offer high integration, ultra-low power application capabilities.
| Datasheet | EVK Board | Downloader & Debugging Tools | Manufacturing Reference Board | IDE & SDK | Manufacturing Reference Program |
|---|---|---|---|---|---|
| Please contact sales. | |||||

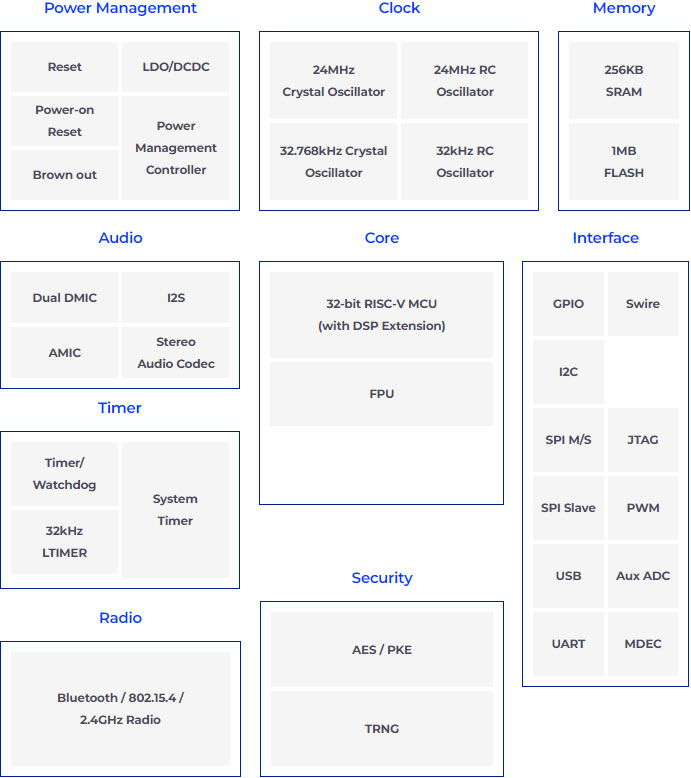

Reset
LDO/DCDC
Power-on
Reset
Power
Management
Controller
Brown out
24MHz
Crystal Oscillator
24MHz RC
Oscillator
32.768kHz Crystal
Oscillator
32kHz RC
Oscillator
256KB
SRAM
1MB
FLASH
GPIO
Swire
I2C
SPI M/S
JTAG
SPI Slave
PWM
USB
Aux ADC
UART
MDEC
32-bit RISC-V MCU
(with DSP Extension)
FPU
Bluetooth /
802.15.4 /
2.4GHz Radio
Dual DMIC
I2S
AMIC
Stereo
Audio Codec
Timer/
Watchdog
System
Timer
32kHz
LTIMER
AES / PKE
TRNG
Applications
Protocols
RF Specification
Memory
Power Consumption (@4.2V DCDC)
Supply Voltage
Package
Technical supports of Bluetooth audio are shown below table.
| Category | Part No. | BT Ver. | Technical Supports | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | EVK Board (Charged) | Downloader (Charged) | Manufacturing Reference Board (Charged) | SDK | AT Command (BLE/Zigbee/802.15.4) | Manufacturing Reference Program (BLE/Zigbee/802.15.4) | |||
| SoC | TLSR9513 | ver.5.2 | O | O | O | O | O | X | O |
| TLSR9515 | ver.5.2 | O | O | O | O | O | X | O | |
| TLSR9517 | ver.5.2 | O | O | O | O | O | X | O | |
| TLSR9518 | ver.5.2 | O | O | O | O | O | X | O | |
