The TLSR8253 is Bluetooth LE + IEEE802.15.4 multi-standard wireless SoC solution with internal Flash and audio support. The TLSR8253 combines the radio frequency (RF), digital processing, protocols stack software and profiles for Bluetooth Low Energy (up to Bluetooth 5.0), BLE Mesh, RF4CE and 2.4GHz proprietary standard into a single SoC.
| Datasheet | EVK Board | Downloader & Debugging Tools | Manufacturing Reference Board | IDE & SDK | Manufacturing Reference Program |
|---|---|---|---|---|---|
| Please contact sales. | |||||

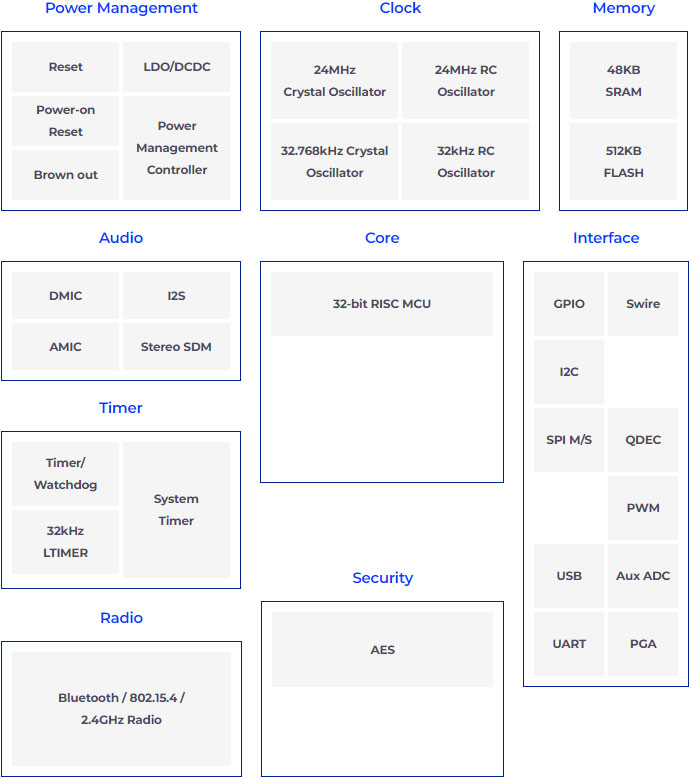

Reset
LDO/DCDC
Power-on
Reset
Power
Management
Controller
Brown out
24MHz
Crystal Oscillator
24MHz RC
Oscillator
32.768kHz Crystal
Oscillator
32kHz RC
Oscillator
48KB
SRAM
512KB
FLASH
GPIO
Swire
I2C
SPI M/S
QDEC
PWM
USB
Aux ADC
UART
PGA
32-bit RISC MCU
Bluetooth /
802.15.4 /
2.4GHz Radio
DMIC
I2S
AMIC
Stereo SDM
Timer/
Watchdog
System
Timer
32kHz
LTIMER
AES
Applications
Protocols
RF Specification
Memory
Power Consumption (@3.3V DCDC)
Supply Voltage
Package
Technical supports of Bluetooth IoT are shown below table.
| Category | Part No. | BT Ver. | Technical Supports | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | EVK Board (Charged) | Downloader (Charged) | Manufacturing Reference Board (Charged) | SDK | AT Command (BLE/Zigbee/802.15.4) | Manufacturing Reference Program (BLE/Zigbee/802.15.4) | |||
| SoC | |||||||||
| TLSR8251 | ver.5.0 | O | O | O | O | O | X | O | |
| TLSR8253 | ver.5.0 | O | O | O | O | O | X | O | |
| TLSR8258 | ver.5.0 | O | O | O | O | O | X | O | |
| TLSR8271 | ver.5.1 | O | O | O | O | O | X | O | |
| TLSR8273 | ver.5.1 | O | O | O | O | O | X | O | |
| TLSR8278 | ver.5.1 | O | O | O | O | O | X | O | |
| TLSR9213 | ver.5.2 | O | O | O | O | O | X | O | |
| TLSR9218 | ver.5.2 | O | O | O | O | O | X | O | |
| Module | TX-M2430 | ver.5.0 | O | O | O | O | O | X | O |
| TX-M2540 | ver.5.0 | O | O | O | O | O | O | O | |
| TX-M2541 | ver.5.0 | O | O | O | O | O | O | O | |
| SIP | TX-S2730 | ver.5.1 | O | O | O | O | O | O | O |
