TX-M2430

The TX-M2430 is Bluetooth LE + IEEE802.15.4 multi-standard wireless solution with internal Flash and audio support, which combines the features and functions needed for all 2.4GHz IoT standards into a module. The TX-M2430 combines the radio frequency (RF), digital processing, protocols stack software and profiles for multiple standards into a module. The module supports standards and industrial alliance specifications including Bluetooth Low Energy (up to Bluetooth 5), BLE Mesh, 6LoWPAN, Zigbee, RF4CE, HomeKit and 2.4GHz proprietary standard.

Datasheet EVK Board Manual Downloader & Debugging Tools IDE & SDK
Please contact sales.

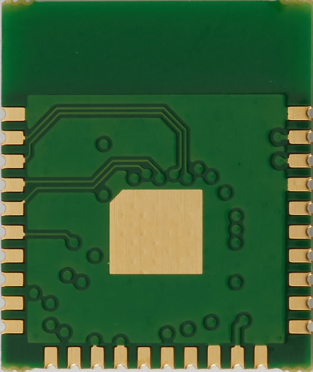

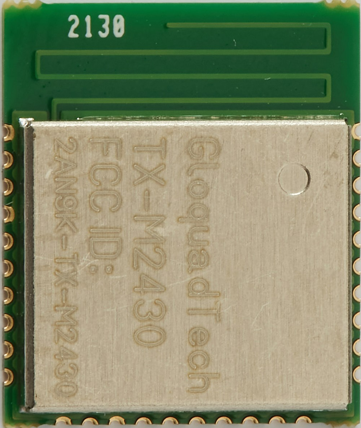

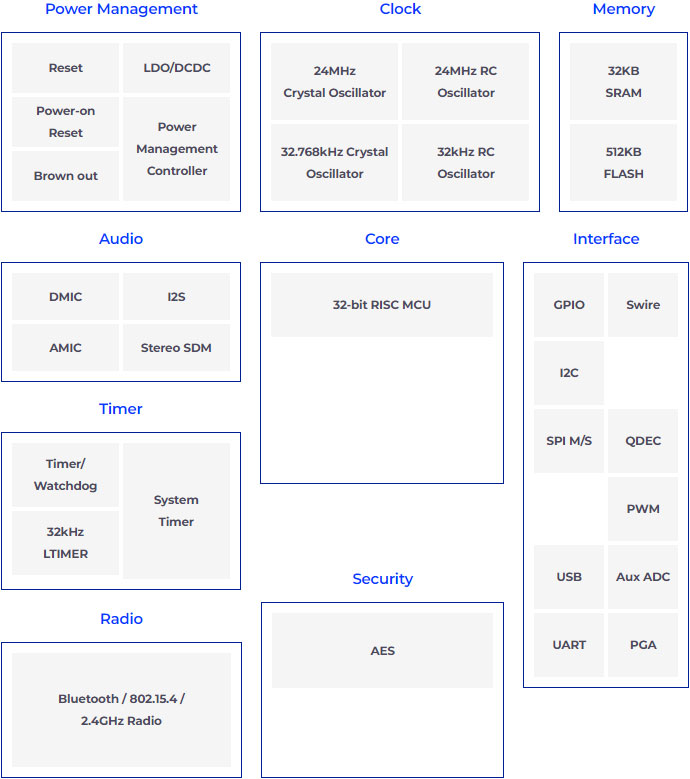

Block Diagram

Power Management

Reset

LDO/DCDC

Power-on
Reset

Power
Management
Controller

Brown out

Clock

24MHz
Crystal Oscillator

24MHz RC
Oscillator

32.768kHz Crystal
Oscillator

32kHz RC
Oscillator

Memory

32KB
SRAM

512KB
FLASH

Interface

GPIO

Swire

I2C

SPI M/S

QDEC

PWM

USB

Aux ADC

UART

PGA

Core

32-bit RISC MCU

Radio

Bluetooth / 802.15.4 /
2.4GHz Radio

Audio

DMIC

I2S

AMIC

Stereo SDM

Timer

Timer/
Watchdog

System
Timer

32kHz
LTIMER

Security

AES

    Applications

  • Wearable devices
  • Smartphone and tablet accessories
  • RF remote control
  • Sports and fitness tracking
  • Wireless toys
  • Smart lighting, smart home devices
  • Building automation
  • Smart grid
  • Intelligent logistics/ Transportation/city
  • Consumer Electronics
  • Health care
  • Industrial control

    Protocols

  • Bluetooth 5.0 compliant
  • BLE: 1Mbps/2Mbps/Mesh
  • IEEE 802.15.4: Zigbee/RF4CE/6LoWPAN/Thread
  • HomeKit, 2.4GHz proprietary
  • Multi-protocol concurrent mode
  • HW OTA upgrade and
    multiple boot switch

    RF Specification

  • Rx sensitivity (dBm):
    -92@BLE 1Mbps,
    -97@IEEE 802.15.4 250kbps,
    -88@2.4G proprietary 2Mbps
  • Tx output power (max.): +7dBm@BLE

    Memory

  • 32KB SRAM
  • Program memory: 512KB Flash

    Power Consumption (@3.3V DCDC)

  • BLE: Rx 12mA, Tx 15mA @ 0 dBm
  • Deep sleep: 1.7uA

    Supply Voltage

  • 1.9V ~ 3.6V

    Package

  • 12 x 14 mm

Zigbee IoT

Technical supports of Zigbee IoT are shown below table.

Category Part No. BT Ver. Technical Supports
Datasheet EVK Board (Charged) Downloader (Charged) Manufacturing Reference Board (Charged) SDK AT Command (BLE/Zigbee/802.15.4) Manufacturing Reference Program (BLE/Zigbee/802.15.4)
SoC TLSR8656 O O O O O X O
TLSR8258 O O O O O X O
TLSR9213 O O O O O X O
TLSR9218 O O O O O X O
TLSR9518 O O O O O X O
TLSR8273 O O O O O X O
TLSR8278 O O O O O X O
TLSR9213 O O O O O X O
TLSR9218 O O O O O X O
Module TX-M2430 O O O O O X O
TX-M2540 O O O O O O O
TX-M2541 O O O O O O O
SIP TX-S2730 O O O O O O O
