The TLSR8656 is Zigbee/RF4CE SoC solution with internal Flash and audio support. The TLSR8656 combines the radio frequency (RF), digital processing, protocols stack software and profiles for Zigbee and RF4CE standard into a single SoC. The TLSR8656 supports IEEE 802.15.4 standard and Zigbee-compliant platform.
| Datasheet | EVK Board | Downloader & Debugging Tools | Manufacturing Reference Board | IDE & SDK | Manufacturing Reference Program |
|---|---|---|---|---|---|
| Please contact sales. | |||||

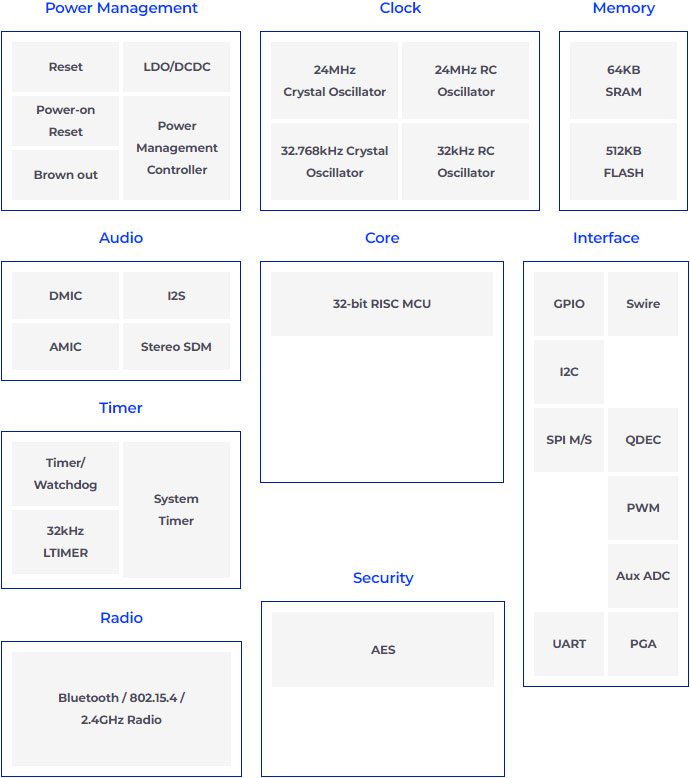

Reset
LDO/DCDC
Power-on
Reset
Power
Management
Controller
Brown out
24MHz
Crystal Oscillator
24MHz RC
Oscillator
32.768kHz Crystal
Oscillator
32kHz RC
Oscillator
64KB
SRAM
512KB
FLASH
GPIO
Swire
I2C
SPI M/S
QDEC
PWM
Aux ADC
UART
PGA
32-bit RISC MCU
Bluetooth /
802.15.4 /
2.4GHz Radio
DMIC
I2S
AMIC
Stereo SDM
Timer/
Watchdog
System
Timer
32kHz
LTIMER
AES
Applications
Protocols
RF Specification
Memory
Power Consumption (@3.3V DCDC)
Supply Voltage
Package
Technical supports of Zigbee IoT are shown below table.
| Category | Part No. | Technical Supports | ||||||
|---|---|---|---|---|---|---|---|---|
| Datasheet | EVK Board (Charged) | Downloader (Charged) | Manufacturing Reference Board (Charged) | SDK | AT Command (BLE/Zigbee/802.15.4) | Manufacturing Reference Program (BLE/Zigbee/802.15.4) | ||
| SoC | TLSR8656 | O | O | O | O | O | X | O |
| TLSR8258 | O | O | O | O | O | X | O | |
| TLSR9213 | O | O | O | O | O | X | O | |
| TLSR9218 | O | O | O | O | O | X | O | |
| TLSR9518 | O | O | O | O | O | X | O | |
| Module | TX-M2430 | O | O | O | O | O | X | O |
| TX-M2540 | O | O | O | O | O | O | O | |
| TX-M2541 | O | O | O | O | O | O | O | |
| SIP | TX-S2730 | O | O | O | O | O | O | O |
